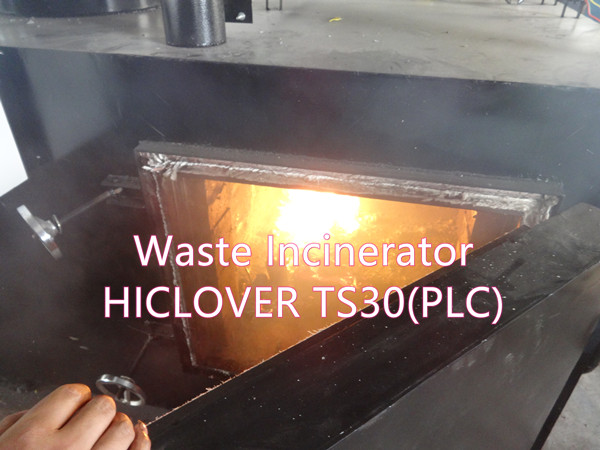

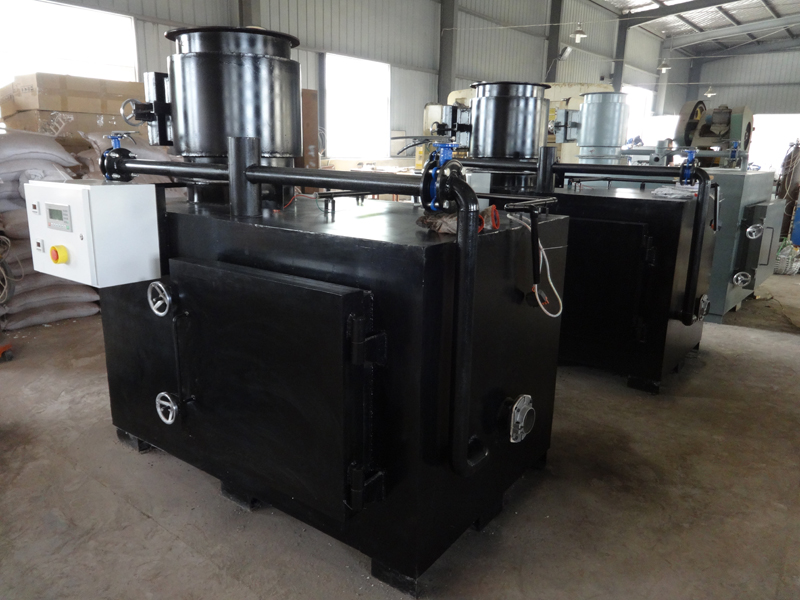

Waste Incinerator HICLOVER TS30(PLC)


Incinerator Items/Model
HICLOVER TS30(PLC)
Burn Rate (Average) 30-50 kg/hour
Feed Capacity(Average) 60kg/feeding
Control Mode PLC Automatic
Primary Combustion Chamber 330L
Internal Dimensions 75x75x60cm
Secondary Chamber 180L
Smoke Filter Chamber Yes
Feed Mode Manual
Voltage 220V 2P
Power 0.5Kw
Burner Type Italy Brand
Oil Consumption (kg/hour) 12
N.Gas Consumption (m3n/hour) 9.8–20
Temperature Monitor Yes
Temperature Thermometer Corundum Probe Tube, 1400℃Rate.
Temperature Protection Yes
Automatic Cooling Yes
Automatic False Alarm  Yes
Automatic Protection Operator(APO)
System Testing Model Yes
Time Setting Yes
Progress Display Bar LCD Display
Oil Tank 200L
Oil Tank Stand 190cm Height
Liquid level Display  Yes
Feeding Door 55x50cm
Chimney 5Meter
Chimney Type Stainless Steel 304
1st. Chamber Temperature 800℃–1000℃
2nd. Chamber Temperature 1000℃-1300℃
Residency Time 2.0 Sec.
Gross Weight 3000kg
External Dimensions 175x120x140cm
1st. Chamber Composition Hot Face Thickness: ≥115 mm
55% of Al203
1750°C Grade
2nd. Chamber Composition Hot Face Thickness: ≥115 mm
75% of Al203
1790°C Grade
Chamber Cold Face Material High Rate Refractory Ceramic Fiber
Other Parts Hot Face Refractory Heavy Duty with steel fiber
Burner operation Automatic On/Off
Dry Scrubber Including
Wet Scrubber Optional
Top Loading Door Optional
Paint for outside face 250°C Grade
Sealing Material Refractory Ceramic Fiber
Upgrade Containerized Mobile Type Optional
CE Certificate CE(2006/42/EC,2014/30/EU
ISO Certificate  ISO9001:2015
High-tech Enterprise Certificate  Yes
