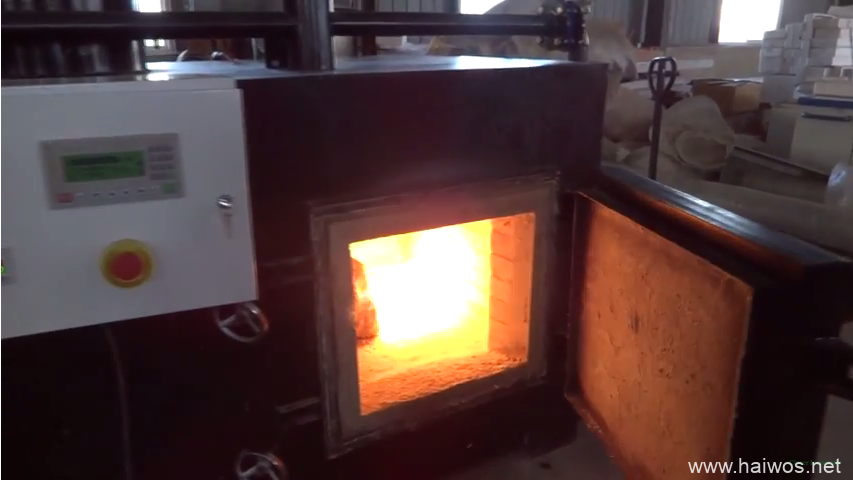

50kgs/hr iraq general waste incinerator with 2 combustion chambers

Items/Model

TS50M




Burn Rate

Average 50 kg/hour

Feed Capacity

Average 50-150 per feeding

Control Mode

PLC(Programmable Logic Controller Incinerator)

Combustion Chamber

450L

Internal Dimensions

75x75x80cm

Secondary Chamber

225L

Smoke Filter Chamber

Yes

Feed Mode

Manual Feeding

Voltage

220V

Power

0.5Kw

Oil Consumption (kg/hour)

Average 13.3

Gas Consumption (N.G, m3n/Hour)

Average 16

Gas Consumption (L.P.G, m3n/Hour)

Average 11.7

Temperature Monitor

Four Digital Display

Temperature Protection

Yes

Oil Tank

100L

Feed Door

55x50cm

Chimney

8Meter

Chimney Type

Stainless Steel

1st. Chamber Temperature

800-1000

2nd. Chamber Temperature

1000-1200

Residency Time

2.0 Sec.

Gross Weight

4500kg

External Dimensions

175x120x140cm
