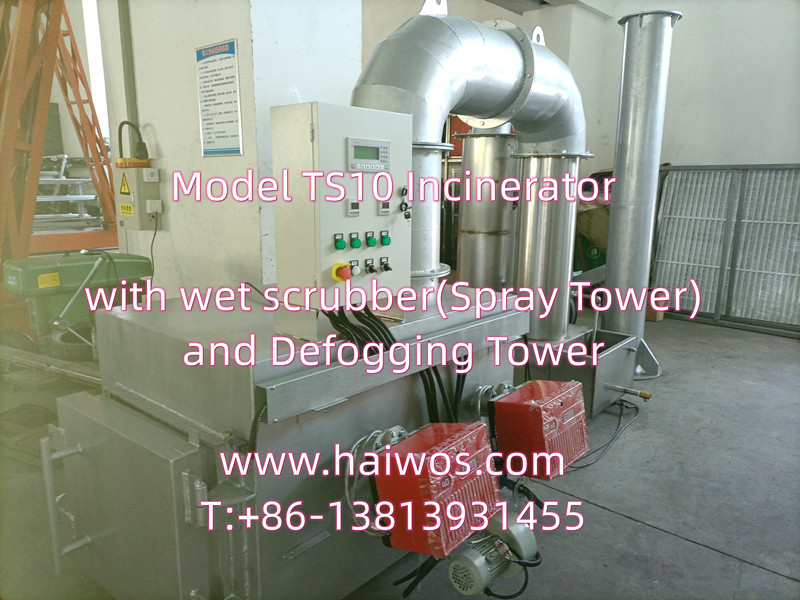

Model TS10 Incinerator with wet scrubber (Spray Tower) and Defogging Tower

Incinerator Items/Model

HICLOVER TS10(PLC)

Burn Rate (Average)

10-20 kg/hour

Feed Capacity(Average)

20kg/feeding

Control Mode

PLC Automatic

Primary Combustion Chamber

100L

Internal Dimensions

50x50x40cm

Secondary Chamber

50L

Smoke Filter Chamber

Yes

Feed Mode

Manual

Voltage

220V

Power

3.0Kw

Burner Type

Italy Brand

Oil Consumption (kg/hour)

6

N.Gas Consumption (m3n/hour)

***

Temperature Monitor

Yes

Temperature Thermometer

Corundum Probe Tube, 1400℃Rate.

Temperature Protection

Yes

Automatic Cooling

Yes

Automatic False Alarm

Yes

System Testing Model

Yes

Time Setting

Yes

Progress Display Bar

LCD Display

Oil Tank

200L

Oil Tank Stand

Yes

Liquid level Display

Yes

Feeding Door

30x30cm

Chimney

3Meter

Chimney Type

Stainless Steel 304

1st. Chamber Temperature

800
