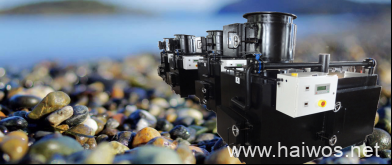

Small Medical Waste Incinerator 2 combustion chambers with scrubber

March 18, 2021

Small Medical Waste Incinerator 2 combustion chamber with scrubber for Virus medical waste

Medical waste incineration involves the burning of wastes produced by hospitals, veterinary facilities,

and medical research facilities. These wastes include both infectious (“red bag”)

medical wastes as well as non-infectious, general housekeeping wastes.

Items/Model	TS30(PLC)
Burn Rate	Average 20-30 kg/hour
Feed Capacity	Average 60kg per feeding
Control Mode	PLC(Programmable Logic Controller Incinerator)
Combustion Chamber	330L
Internal Dimensions	75x75x60cm
Secondary Chamber	180L
Smoke Filter Chamber	Yes
Feed Mode	Manual Feeding
Voltage	220V
Power	0.5Kw
Oil Consumption (kg/hour)	Average 13.3
Gas Consumption (N.G, m3n/Hour)	Average 16
Gas Consumption (L.P.G, m3n/Hour)	Average 11.7
Temperature Monitor	Four Digital Display
Temperature Protection	Yes
Oil Tank	100L or More(Optional)
Feed Door	55x50cm
Chimney	5Meter or More(Optional)
Chimney Type	Stainless Steel
1st. Chamber Temperature	800℃–1000℃
2nd. Chamber Temperature	1000℃-1200℃
Residency Time	2.0 Sec.
Gross Weight	4000kg
External Dimensions	175x120x140cm
