Medical Waste Incinerator Trailer Mounted

*Double combustion chambers
*Smoke filter chamber and S.Steel chimney

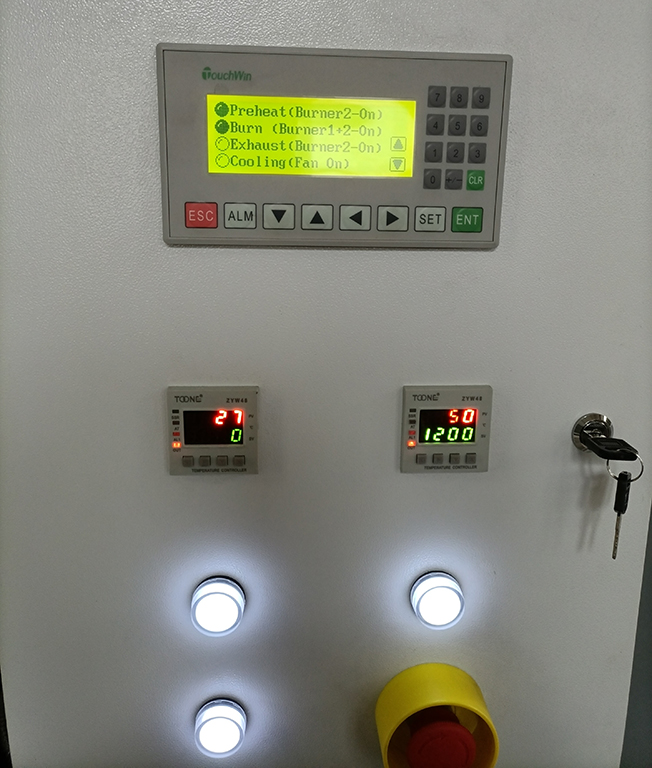

*Italy Riello Oil burner and PLC Auto. control
*Heavy duty mobile trailer with safe parts
*Minimal installation
*Mobile by truck tractor
1. Should be Trailer mounted Trailer Type
2. Be able to burn Medical waste 100-200kgs per hour
3. Diesel diesel oil type
4. 220 V single phase
5. Incinerating temperature range 800-1200 degree Celsius

Items/Model

TS100(PLC) (Mobile Type)




Principle

Medical Waste Incineration Treatment

Burn Rate

Average 100-200 kg/hour

Control Mode

PLC(Programmable Logic Controller Incinerator)

Combustion Chamber

1200L

Internal Dimensions

120x100x100cm

Secondary Chamber

600L

Smoke Filter Chamber

Yes(Dry Scrubber)

Feed Mode

Manual

Voltage

220V

Power

0.9Kw

Oil Consumption (kg/hour)

average 20.4

Gas Consumption (m3/hour)

***

Temperature Monitor

Digital Display

Temperature Protection

Yes

Oil Tank

200L

Feed Door

80x60cm

Chimney

3Meter

Chimney Type

Stainless Steel

1st. Chamber Temperature

800
