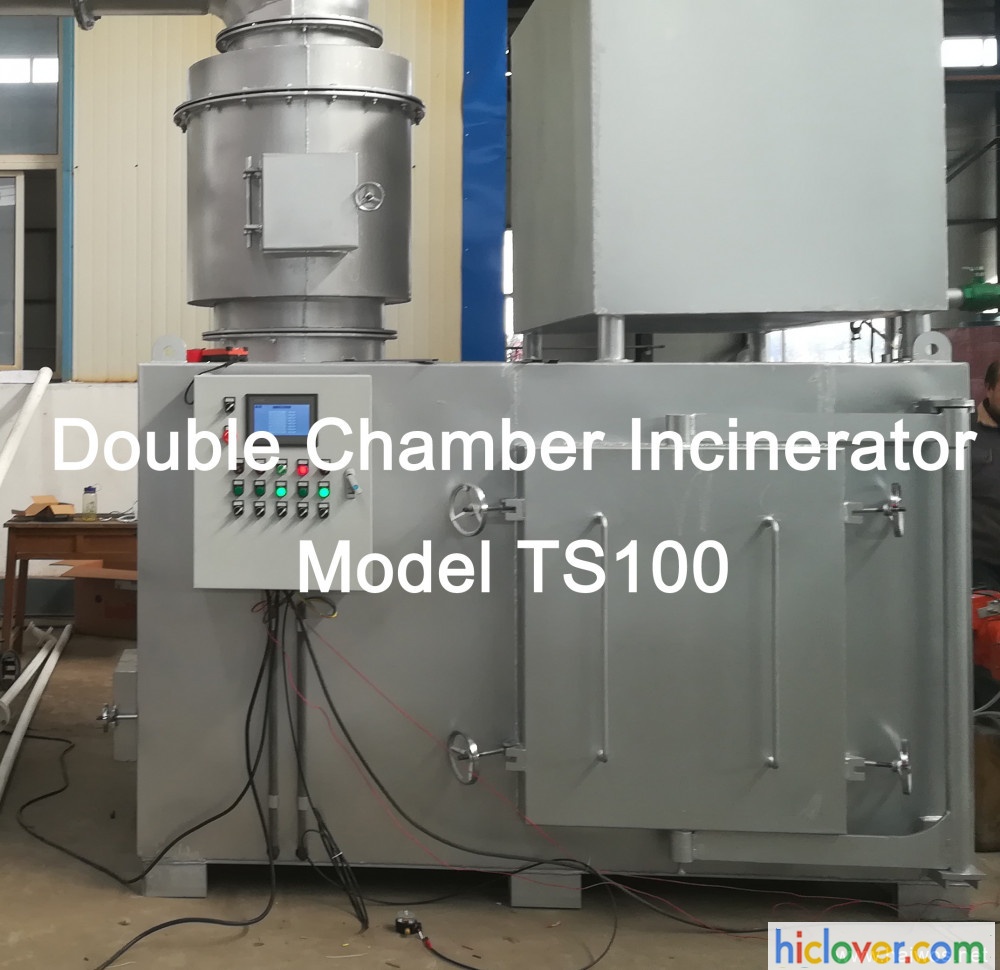

Device Measurement : Burning Rate : 60-80 kg/hr Pyrolytic Double Chamber Burner


Items/Model

TS100( PLC)


Concept

Waste Incineration Treatment

Shed Rate

60-80 kg/hour

Control Setting

PLC( Programmable Reasoning Controller Burner)

Burning Chamber

1200L

Inside Measurements

120x100x100cm

Second Chamber

600L

Smoke Filter Chamber

Yes( Dry Scrubber)

Feed Establishing

Manual

Voltage

220V

Oil Usage (kg/hour)

Common 20.4

Gas Consumption (m3/hour)

***

Temperature Level Monitor

Digital Existing

Temperature Level Degree Defense

Yes

Oil Container

1100L

Feed Door

80x60cm

Smokeshaft

10Meter

Smokeshaft Kind

Stainless Steel

1st. Chamber Temperature

800 ℃– – -1000 ℃

second. Chamber Temperature Level Degree

1000 ℃ -1200 ℃

Residency Time

2.0 Sec.

Gross Weight

6000kg

Outside Measurements

260x150x180cm


The requirement is for a pyrolytic double-chamber incinerator. The incinerator shall be capable of using diesel
fuel as a supplemental fuel oil.
It should incorporate an Air Pollution Control (APC) System suitable for basic emission control.
The proposed incinerators shall be appropriate for critical harsh environmental conditions, suitable for rapid
deployment, and different climate zones (e.g. desert, tropical country, mountain, etc.) in which there are several
variations of the relative natural forces (e.g. temperature, humidity, wind, etc.) for a minimum period of 10 years
if the specified maintenance schedule is followed.
The incinerators should be supplied assembled, whenever possible, and all parts and components should be
packaged on pallets in order to be transported via road, air (via helicopters or air-cargoes, e.g. MI8 or C130)
and via sea in a 20’ ISO sea shipping containers.
